Charge Energy Distribution

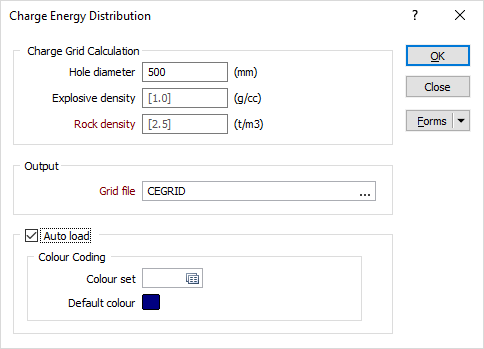

	Click the Charge Energy Distribution button to calculate a charge energy distribution grid that can be used to validate ring patterns and their explosive charging.
	The calculation requires the geometry of the hole pattern, the hole diameter, charge quantities, and the density of the explosive and the rock mass. The results of the calculation are reported as kilograms of explosive kg/m3 or kg/t.

Hole diameter

Enter the diameter of the holes in millimetres.

Charge density

Enter the density of the explosive charges in grams per cubic centimetre.

Rock density

Enter the density of the rock in tonnes per metres cubed.

Output

Grid file

Enter (or double-click F3 to select) the name of the output Grid file.

Double-click (or click on the Form Sets icon) to select a wireframe set. The wireframes in the set will be saved as a single wireframe. Double-click (or click on the ellipsis) to select an Output Wireframe Type. Double-click (or click on the Select icon) to select the Name of the Output Wireframe.

Auto load

Optionally, select the check box to Auto load the generated grid in Vizex.

Colour set

Colour sets are one of the most important ways of making it easy to differentiate between values, regions and other objects in the display. The tools you use to create colour sets in the application are particularly powerful. Because colour sets are saved as form sets they can be used anywhere in a project and can even be exported to other projects.

Double-click the Colour Set input box if you want to select an existing colour set. Right-click in this box to edit the selected colour set or to create a new one.

Default colour

Accept the default colour or double-click to select a default Colour for the Output wireframe. Optionally, click on the Attributes button to edit the standard attributes of the wireframe and add one or more user-defined attributes.

Forms

Click the Forms button to select and open a saved form set, or if a form set has been loaded, save the current form set.

By design the Forms button is not available for loaded Vizex layers (i.e. when opening the form set properties of a layer in the Display Pane). In Vizex, the Forms button is only available for new forms opened via the Display | Vizex menu (or by double-clicking on a form type node in the Vizex Forms Pane).

Save

Click the Save button to save the changes you have made to the form set.

Save As

Click Save As to save your changes as a new form set. Save As will default to the first available form set number.

Reset

Click Clear to clear the form of all values and reset the form to its default state. In the case of tabbed forms, set the first tab as the active tab.

Collapse

Collapse (roll-up) the form to preview the results of an operation in Vizex, or obtain input values from Vizex, the Property Window, the File Editor, or the Plot Editor.
