Ring Plot Fields

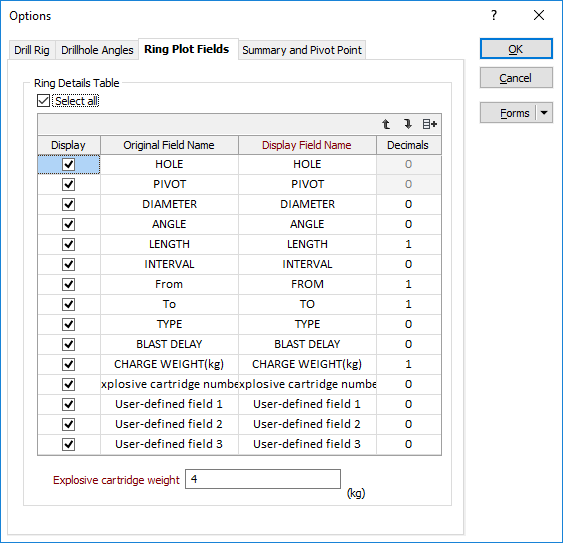

Use the options on the Ring Plot Fields tab of the Ring Design Options form, to choose which ring details to include in (or exclude from) a Ring Plot.
Ring Details Table
The Ring Details grid control allows the number and the order of the plot fields in the Detail table to be easily adjusted. Use the check box options (or click Select All) to include ring details in the plot.
You can use the buttons on the toolbar (or use the right-click menu) to manipulate the order of the rows in the list.
|
Click the buttons on the toolbar to Move Up or Move Down the selected rows. |
To edit the Display Name for a field, double-click on the cell to make it editable.
Explosive cartridge weight
If you have chosen to display an Explosive cartridge number field in the plot, you must specify an Explosive cartridge weight. This value is used to calculate the numbers and is calculated as:
Charging weight / Explosive cartridge weight
(rounded up to the nearest whole number)
