Drillhole

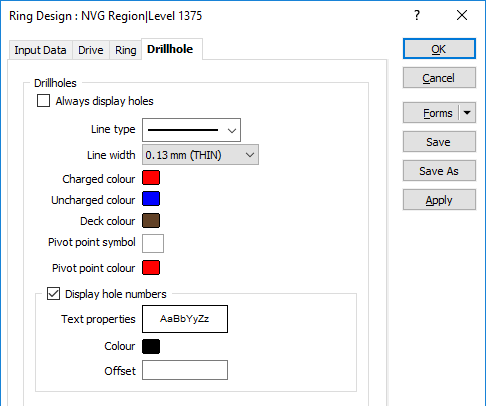

On the Drillhole tab of the Ring Design form, specify the display characteristics of the holes.
Always display holes
By default, the holes on a ring are only displayed when you are in Edit Ring mode. Select this option to always display the holes irrespective of the mode or display orientation.
Line type
Select a line type. A preview of each line type is shown in the drop-down list. A variety of solid, dotted, and dashed line styles are available for selection.
Line width
Select a (THIN, MEDIUM, THICK, or custom) line width from the drop-down list. An extensive selection of custom widths (in millimetres) are available for selection.
Charged and uncharged colours
Double-click on the colour icons, to select a colour that will be used to differentiate between the charged and uncharged hole sections.
Pivot point symbol and colour
Double-click to select a symbol and a colour for the pivot point.
Display hole numbers
Select this option to display hole numbers.
For the numbering of the holes: Double-click on the Text Properties Preview box to select a font and set text properties for the labels.
Double-click to select a colour for the labels.

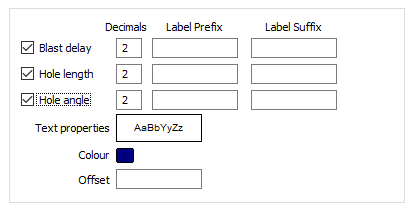

Display labels
Select the following options to display:
- the blast delay of each hole
- the length of each hole
- the angle of each hole
You can also specify the decimal precision of the displayed values (the default is zero) and specify a label prefix and label suffix.
Double-click on the Text Properties Preview box to select a font and set text properties for the labels. and set the colour of the text annotation.
To offset the labels, enter a value in grid units..
Note: The Blast Delay, Length, and Angle will always be shown as part of the properties of a hole and are included in the Ring Plot Report.
