Polyline Section Tool

Click the Polyline Section tool on the Vizex Sections toolbar to define a polyline section (fence) view comprising multiple segments.

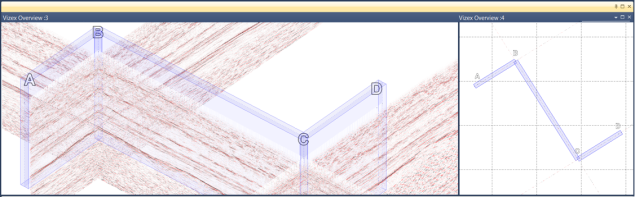

To use this option, you draw the section location using the respective tool in a Vizex plan view, and then right-click or double-click to apply it. Vizex will then display a new window containing the section.

Polyline Sections may be drawn in any position and may include any supported Vizex data. Normal towards/away distances apply and a very limited number of editing tools are also available.

If only two points are specified, a regular section view is created. If three or more points are specified, a Polyline Section view is created. Limited string editing is enabled, as well as panning/zooming using the middle mouse button. A scale bar and orientation axis can be added to the view, and a plot or screenshot of the sections may be generated.

To display a polyline section:

1. Load the relevant data into Vizex (any Vizex type) and ensure the view orientation is set to Plan.
2. Click the Polyline Section tool on the Vizex Sections toolbar.
3. Create a point at each bend in the section, optionally snapping to other data.

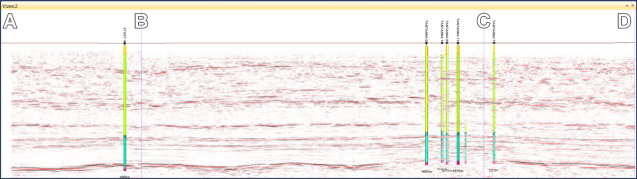

4. Right-click or double-click to finish the section. Vizex will display the section in a new window.
