Create Trench Database
A Drillhole Database can be used to generate 'trench' trace coordinates as well as 'downhole' trace coordinates. If you select Drillhole | Database | Create Trench Database, a file containing the coordinates of your trench deflection points needs to be specified. Trench Assay files (which are similar to Drillhole Assay files) and Event files can be associated with the Drillhole Database.
Properties

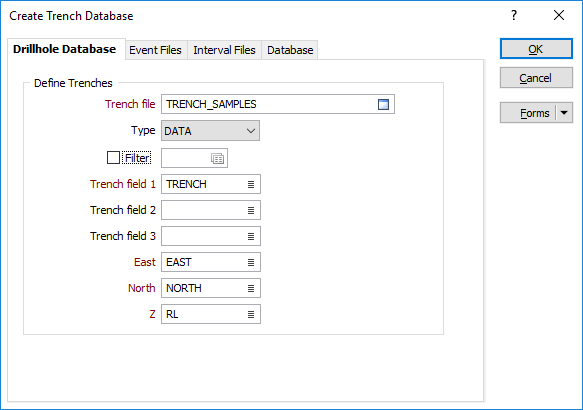

The Drillhole Database Properties form is displayed whenever you create or edit a Trench Database.
Trench file
Specify the name of a file that contains the coordinates of your trench deflection points, enter field settings and optionally apply a filter in the Define Trenches pane.
Trench field
Double-click to select the name of the filed that uniquely identifies each trench.
East and North and Z fields
Specify the names of the fields in which Easting, Northing, and Z coordinates are stored in the Trench file.
Database (This tab is visible when you create a new database.)
Forms
Click the Forms button to select and open a saved form set, or if a form set has been loaded, save the current form set.
OK
Finally, click OK to save the properties of the database you are creating or editing.
