Polygonal Restriction

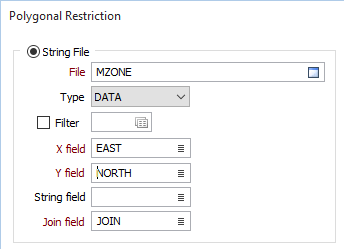

Polygons can be used to restrict the data that is used as input to various functions. To define which polygons will be used, select the String File or the Outline File input option in the Polygonal Restriction dialog.

String File

Select a file Type and then double-click (F3) to select the input File that contains the polygons you want to use to restrict the data. Optionally, apply a Filter to limit the records to a particular subset of data.

X, Y fields

Double-click (F3) to specify the names of the fields in which Easting and Northing coordinates are stored.

Outline File

Double-click (F3) to select the input File that contains the outlines you want to use to restrict the data.

Restrictions

Choose either NAME or CODE from the Select By list.

Enter the selection criteria in the Identifier response or double-click and select an outline attribute from the list. Do this for up to 5 outline criteria. Use Wildcards to generalise identifiers. See Wildcards

By default all outlines in the specified Outline file are used.
