Chart Controls
|

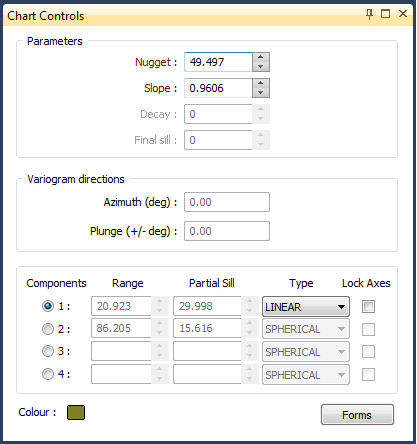

When you run the Stats | Semi Variograms function, if the Show Semi Variogram Model button is selected on the Chart toolbar, you can view and edit the parameters of the model to interactively fit a theoretical model. |
|
The direction of the model you have selected in the Input Data form will determine which of the following inputs are enabled. In some cases the names of the inputs will change.
All response boxes have spin controls associated with them and these provide a quick way of adjusting the values. The controls are set up to increment the increment value (change gear) over 10 consecutive increments by a factor of 10. You can therefore use these to quickly make both fine and coarse adjustments.
When a spin control has focus, you can use the mouse wheel to increase or decrease the displayed value.
Nugget
Enter the Nugget value. The Nugget value (effect) is the variance at distance zero. This is always less than or equal to the sill. The nugget effect arises because the regionalized variable is erratic over a very short distance (less than the sampling interval).
Slope / Cycle distance
For a Linear model enter the Slope of the line.
For a Hole Effect or Paddington Mix model, enter the Cycle distance (the distance between peaks and troughs).
Decay / Power
For a General Linear model enter a Power that will be used with the Slope to calculate a Range.
For Hole Effect or Paddington Mix variogram models, enter a damping factor. This is an inverse function - the smaller the factor the faster the damping.
Final Sill
Enter the Final sill. The Final Sill is the semi variogram (Y axis) value of the final or highest sill in multiple component variogram models.
Variogram directions
Define the variogram direction by entering Azimuth and Plunge values. These values are used internally to define the model's Anisotropy.
Number of components
Note that some semi variogram model types only allow one component to be defined. Where multiple components are allowed, the number of components can be set (or updated) and the associated range, partial sill, and model type can be entered for each component.
Range
Enter the range of the components of the semi variogram model. The range is the distance where there ceases to be an identifiable relationship between sample pairs.
Partial Sill
Enter the Y coordinate (semi variogram) value of the sill for each component of the model. This is constant for a dataset.
Model type
The type of model should have a general shape which resembles the experimental semi variogram. See: Types of semi variogram model
Lock Axes
Optionally use the check boxes to lock component sills across multiple axes (directions). When the sills are locked, all you need to do is adjust the ranges. Locking the sills doesn't just stop their values from changing, it also matches the sills of the other directions (in a 3D model) to whichever direction is active when you enable the option.
In other words, the nugget values of all three models are locked to the value of the current model.
Forms
Once you have refined the model you can save each variogram as a form set, which then become a permanent part of the main form. The same form sets are also accessible in Gridding, Cross Validation, and the 3D Block Kriging functions.
You can set model parameter colours on the Display tab of the Semi Variograms form.
