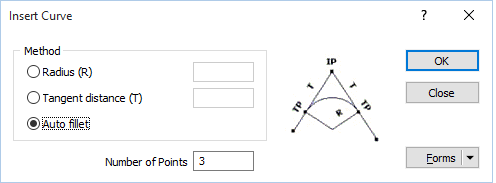

Insert Curve

Click the Insert Curve tool (Use or the right-click Insert Curve menu option) to insert a curve at the selected point.

Method

Radius

Select this option to insert a curve by defining a radius. Optionally specify the number of points.

Tangent Distance

Select this option to insert a curve which is tangential to the selected point. Specify a distance to determine the length of the curve, and optionally the number of points.

Auto fillet

The Auto fillet option applies whatever fillet radius is needed to determine the arc of the curve.

Number of points

Specifying the number of points on the curved segment is optional. The number of points is calculated automatically when no value is specified.
