Seismic (SEG-Y)

Seismic surveying is an essential tool for stratified deposits such as coal. Seismic data is easily combined with drillholes in Micromine, providing another layer of information and improving the quality of the resulting models.

Vizex supports the 2D and 3D SEG-Y formats used by geophysicists.

• The 2D Seismic (SEG-Y) layer supports common processing options like manual adjustments, automatic gain control and vertical depth/time adjustments. Display options such as trace thickness, colour and fill make it easy to produce a visually informative display.

• The 3D Seismic (SEG-Y) layer supports processing options for in-line and cross-line sampling. Colour, 3D Shaded and 2D Slice draw styles, and layer transparency, can all be applied to the model. An option to generate isosurfaces around discontinuities detected during seismic interpretation, is also provided.

Select Display | Seismic SEG-Y to read and display a SEG-Y file as a layer in Vizex. The SEG-Y-file format is one of several standards developed by the Society of Exploration Geophysicists for storing geophysical and Seismic Data.

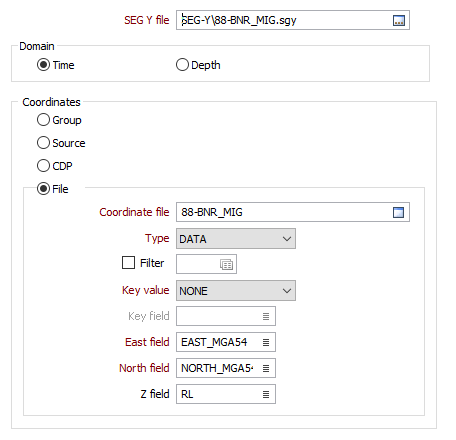

Input Data

SEG-Y File

Double-click (or click on the Select icon) in the File box to select an Input (*.sgy, *.segy) file. You can right-click in the File box to display basic information about the file (the revision of SEG-Y, the sample count, the sample interval from the Binary Header, and the text in the basic Text Header).

Domain

Chose whether the domain of the data is Time or Depth.

Coordinates

Select an option that will be used to obtain the XY coordinates of each trace. There are four options:

• Group: (bytes x=81-84, y=85-88)
• Source: (bytes x=73-76, y=77-80)
• CDP: (bytes x=181-184, y=185-188) Revision 1.0 only

The values from these bytes will be modified by the coordinate scalar at bytes 71-72.

• File: Select a file containing the X, Y, and optionally Z coordinates for the Traces.

Additionally, this file can contain a Key Field to link the coordinates to a specific trace. The Key can be the Source Point (bytes 17-20), Trace in Line (bytes 1-4), Trace in File (bytes 5-8) where the value in the file should match the value in the trace header. If the Key value is None then trace 1 will have the coordinates defined in row 1 and so on...

Select a file type and then double-click (or click on the Select icon) in the Coordinate file box to select the file that contains the trace coordinates. Specify the required (Key, East, North) fields in the file.

Detect elevation

The Z coordinate can either be obtained from the SEG-Y file, as defined in the form, or be obtained from the Coordinate file described above.

If the Detect elevation check box is selected, then the Z coordinate is read from the SEG-Y file:

GROUP	(bytes 41-44)
GROUP (DATUM)	(bytes 53-56)
SOURCE	(bytes 45-48)
SOURCE (DATUM)	(bytes 57-60)

The values from these bytes will be modified by the coordinate scalar at bytes 69-70.

Datum elevation

Otherwise, the elevation of every trace can be defined by the elevation value entered in the Datum elevation box.

Manual Adjustments

The following options allow you to override the scalar for X, Y and Z (elevation or depth) coordinates:

Override XY scalar

This will replace the scalar used when calculating the coordinates. Use the value entered here rather than the value in bytes 71-72. This scalar will be applied to the file coordinates as well.

Override Z scalar

This will replace the scalar used when calculating the elevation. Use the value entered here rather than the value in bytes 69-70.

The values in these scalars follow the same rules as in the SEG-Y. If positive, scalar is used as a multiplier; if negative, scalar is used as a divisor.

Offset

The coordinates calculated will all be offset by the values defined in the X, Y, and Z fields.

Options

Display SEG-Y

Forms

Click the Forms button to select and open a saved form set, or if a form set has been loaded, save the current form set.

By design the Forms button is not available for loaded Vizex layers (i.e. when opening the form set properties of a layer in the Display Pane). In Vizex, the Forms button is only available for new forms opened via the Display | Vizex menu (or by double-clicking on a form type node in the Vizex Forms Pane).

Save and Save As

Click the Save button to save the changes you have made to the form set. Click Save As to save your changes as a new form set. Save As will default to the first available form set number.

Reset

Click Clear to clear the form of all values and reset the form to its default state. In the case of tabbed forms, set the first tab as the active tab.

Undo and Redo

Click Undo (CTRL + Z) to undo recent changes in the form. After an Undo, click Redo (CTRL + Y) to restore the last change that was undone.

Collapse

Collapse (roll-up) the form to preview the results of an operation in Vizex, or obtain input values from Vizex, the Property Window, the File Editor, or the Plot Editor.
