Wireframe Clean

Use Wireframe | Clean to clean and repair an Input wireframe (by removing unnecessary points and triangles). Point snapping is performed automatically as part of the operation.

By 'cleaning' a wireframe, you will improve the performance and reliability of any function that uses the wireframe as an input.

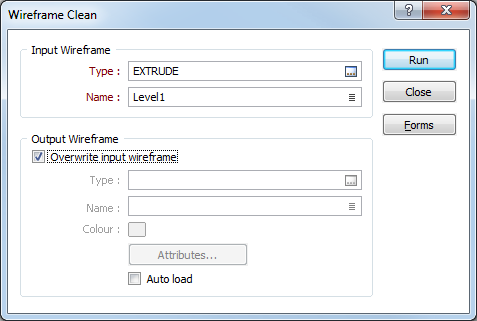

In the Wireframe Clean form you can either Overwrite the input wireframe or save the cleaned wireframe as an Output wireframe.

More advanced clean and repair operations are provided by the Wirefame | Utilities | Advanced Repair utility.

Output

Select the Overwrite input wireframe option if you want the result of the process to be applied to the Input wireframe. If this option is selected, the following Output prompts will be disabled:

Type and Name

Specify the type and name of the Output wireframe.

Colour

Specify a default display colour for the Output wireframe.

Attributes

Click the Attributes button to set Attributes for the wireframe output.

User-defined attributes may be mapped against the fields in the Input file. It is also possible to specify a default value for each attribute. Default values are used when a corresponding value in the Input file is either missing or is not mapped.

Auto load

Select this option to load the generated output in Vizex. The default draw style for an auto-loaded wireframe is 3D Shaded.
