GIS

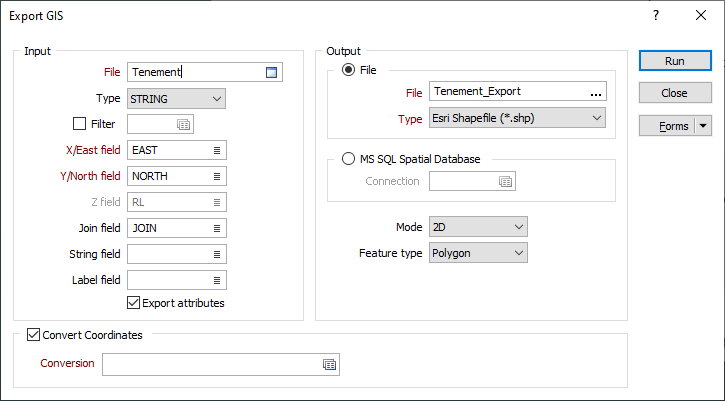

Select File | Export | GIS function to export data to various GIS formats.

Input File

Select a (DATA, SURVEY, STRING, PIT DESIGN) file type and then enter (or double-click to select) the name of the file containing the data to be exported. If required, define a filter to selectively control which records will be included in the export process.

The input fields you need to specify will depend on the output file type and the output feature type.

X/Y/East/North fields

Double-click to select the fields that contains the coordinates of the data to be exported.

You can use the Convert Coordinates option on this form (see below) to convert the data into a local, projected or geographic coordinate system during the export process

Z field

If you are exporting 3D data, double-click to select the name of the field that contains Z coordinates.

Because the attribute table can only contain one Z value per shape, Z attributes are set to NULL for shapes with multiple Z values, avoiding a mismatch between the geometry and its attributes. Geometries are still exported as 3D shapes. Shapes with constant Z values (such as contours) will have the correct Z attribute.

Join field

In forms that require polylines as an input, the values in this field define whether the data points in the input file should be joined by a line. If successive records have the same value in this field, a line will join the points. If two-factor topology is required, the values in a String field may also be used to segment the lines.

String field

In most forms, the String field is an optional generic attribute used to store a secondary input such as a code. Traditionally, this field has also been used with the Join field to define whether data points should be joined by a line, or strung, hence the name.

Label field

If you are exporting to a MapGIS (.wat) point file, double-click to select a field containing values that can be used to label the points in the output file.

Export attributes

To export attributes, select this check box. Values in fields other than the coordinate fields you have specified (above) will be written as attributes to the output file.

Output

File

Select an output file type and then enter (or double click to select) the name of the file the data will be written to. You can export to the following GIS file types:

File Type	File Extension
Esri Shapefile	shp
Esri File Geodatabase	gdb
Geography Markup Language	gml
MapInfo Interchange	mif
MapInfo Table	tab
MapGIS Points	wat
MapGIS Lines	wal
SpatialLite Database	sqlite

MS SQL Spatial Database

Select this option to set the connection parameters of the database table you want to export data to. See: Spatial Database Settings

Click the Forms icon in the String input box, to select a saved form set. Right click (F4) to Edit the current form set, or select New to create a new form set.

Mode

Choose whether to export 2D or 3D data. This option is disabled for MapGis Point and MapGis Line output formats. All other output formats support the display of spatial data in 2D or 3D.

Feature type

Some output formats only support one feature type per file. If the Feature type option is available for the file type you have selected, choose whether to export Point, Polyline or Polygon data.

In the case of an Esri File Geodatabase, Micromine will assign a unique <myInputFile>_<Layer> name to each layer in the geodatabase. For example, if the input file is Zones.str, then the data will be loaded in separate Zones_Points, Zones_Lines and Zones_Polygons layers.

Convert Coordinates

Select the Convert Coordinates check box to convert between coordinate systems during the export process.

Conversion

Select, or create a new, coordinate conversion form set. See: Setup

Forms

Click the Forms button to select and open a saved form set, or if a form set has been loaded, save the current form set

Run

Finally, click the Run button to begin the export process.
