Reblock with Rotation

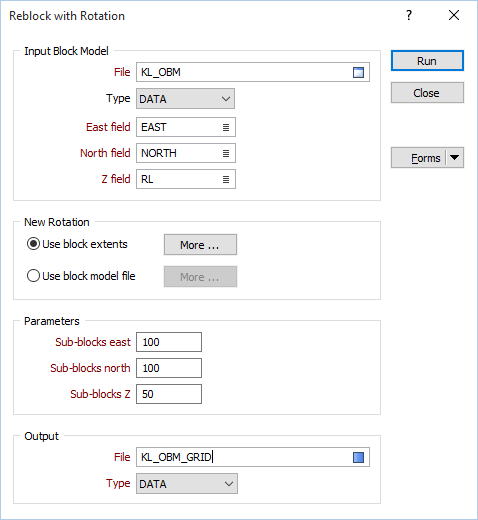

To change the rotation of an existing block model, select the Modelling | Block Model Tools | Reblock with Rotation menu option. A block model can be rotated so that it is aligned with the strike of an orebody, for example.

You can explicitly set the extents and the rotation of the model, or set the rotation based upon the rotation of another block model.

Input Block Model

File

Specify a block model file as the input file.

Easting, Northing and Z fields

Specify Easting, Northing and Z coordinate fields in the input file.

New Rotation

There are two options:

Use block extents

Click the More button to set the rotation of the block model. See: Block Model Extents

Use block model file

Click the More button to define the rotation of the block model using the rotation of another block model.

Parameters

Re-blocking is required in order to change the rotation of the block model. Enter parameters to set the level of sub-blocking in each direction.

Output

File

Double-click (or click on the Select icon) to select the Type and Name of the Output file.

Forms

Click the Forms button to select and open a saved form set, or if a form set has been loaded, save the current form set.

Run

Finally, click the Run button to run the Rotate Block Model function using the parameters you have defined.
