To save the wireframes you have selected in Vizex as a wireframe set (Wireframe module only):

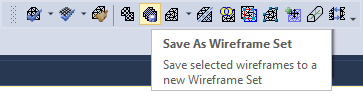

- Click the Save As Wireframe Set button on the Wireframe Tools toolbar (also available via the right-click Selection menu).

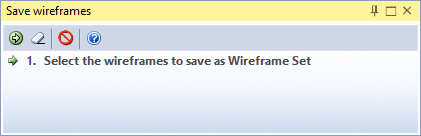

- The Selection Assistant will prompt you to select the wireframe objects if they are not already selected.
- Select the wireframes you want to save as a wireframe set.
- Click the Accept button on the Selection Assistant toolbar to confirm the selections you have made.
- If necessary, you can modify your selection before saving them as a set.

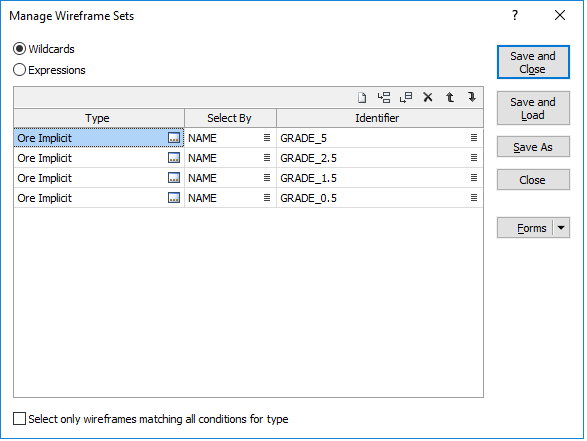

The wireframes you have selected in Vizex are previewed in the Manage Wireframe Sets form:
Use the buttons on the grid list toolbar to Manage the rows in the list.
Save and Close
To save the types, attributes and names you have defined as a form set and re-use them in other functions, click Save and Close.
Save and Load
To save the types, attributes and names you have defined as a form set and then load them in Vizex, click Save and Load.
Save As
Click Save As to save your changes as a new form set.
Close
Click Close to close the form. Any changes you have made will be saved as the default form set.
Forms
Click the Forms button to select and open a saved form set, or if a form set has been loaded, save the current form set.
By design the Forms button is not available for loaded Vizex layers (i.e. when opening the form set properties of a layer in the Display Pane). In Vizex, the Forms button is only available for new forms opened via the Display | Vizex menu (or by double-clicking on a form type node in the Vizex Forms Pane).
Save and Save As
Click the Save button to save the changes you have made to the form set. Click Save As to save your changes as a new form set. Save As will default to the first available form set number.
Reset
Click Clear to clear the form of all values and reset the form to its default state. In the case of tabbed forms, set the first tab as the active tab.
Undo and Redo
Click Undo (CTRL + Z) to undo recent changes in the form. After an Undo, click Redo (CTRL + Y) to restore the last change that was undone.
Collapse
Collapse (roll-up) the form to preview a chart, or preview the results of an operation in Vizex, or obtain input values from Vizex, the Property Window, the File Editor, or the Plot Editor.
