Plane

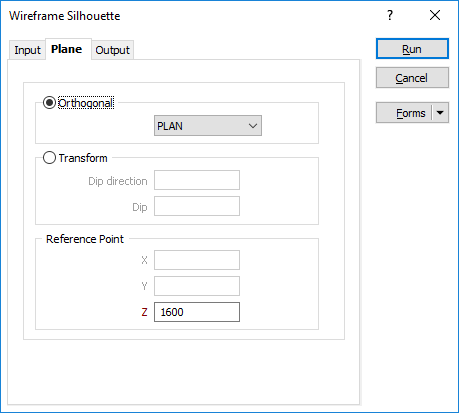

On the Plane tab of the Silhouette form, select the Orthogonal option to flatten the silhouette string onto an orthogonal (LOOKING WEST, LOOKING NORTH, PLAN) projection plane.

Select the Transform option to flatten the silhouette string onto a transform projection plane. Enter the Dip Direction and Dip values that will be used to calculate the transformation.

Reference Point

For the Orthogonal or Transform plane you have specified, enter a reference point that will be used as the origin of the projection plane.
