Detonator

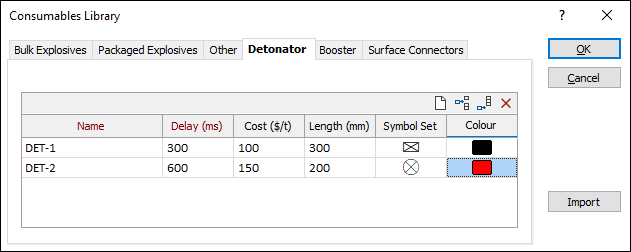

On the Detonator tab of the Consumables Library form, the delay and cost details for detonators used in your explosive primers can be defined.
Append Row
The Append Row icon is used to add a row to the Detonator table, into which the details for a detonator can be entered.
Name
Enter the identifying name of the detonator that can be used to charge drillholes in the Name column. Each detonator must have a unique name.
Delay (ms)
The delay in milliseconds for the detonator is entered in the Delay (ms) column. Each connector must have a delay value specified. The delay time value will contribute to the Blast Delay of blastholes. Note; a value of 0 is acceptable.
Cost ($/t)
The dollar cost amount per ton, paid for the detonator is entered in the Cost ($/t) column. This value is used to calculate the total costs associated with the use of the product on a given round.
Symbol Set
Select a symbol for each detonator. A symbol will be displayed at the down hole depth of each blasthole to charge a round.
Colour
Select a colour for each detonator symbol.
