Tunnel Summary

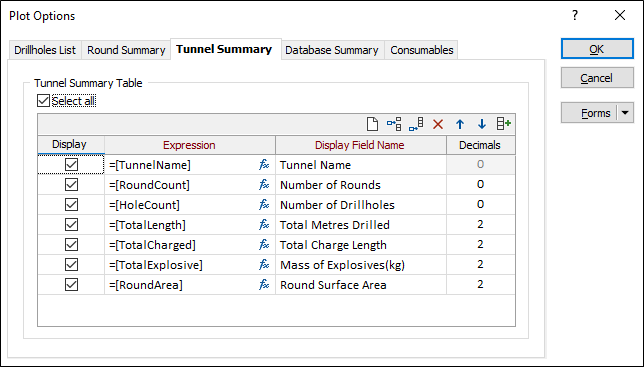

On the Tunnel Summary tab of the Plot Options form, choose which tunnel summary totals to include in (or excluded from) the plot.
The Tunnel Summary tab provides a summary of the main properties of all the rounds along the tunnel of which the plotted round is located.
Use the check box options (or click Select All) to include summary information in the plot. The Summary Table grid control allows the number and the order of the database fields included in the summary to be easily adjusted. You can use the buttons on the toolbar (or use the right-click menu) to manipulate the order of the rows in the list.
|
Click to Move selected rows Up or Down. |
|
Click Autofill to reset the list of fields and their default values. |
To edit the Display Name for a field, double-click on the cell to make it editable.
