Output

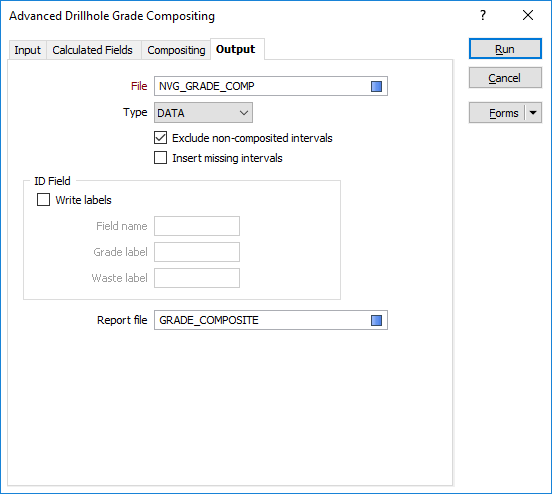

On the Output tab of the form, specify the output file and set options to:
- exclude non-composited intervals
- Insert missing intervals.
Output file and Report file
Enter the name of the Output file and optionally a Report file. If any errors occur during the process, they will be written to the Report file. See: Errors in the Compositing process
Exclude non-composited intervals
If this option is selected, only those records that were composited will be written to the output file. Otherwise, all records that were processed will be written to the file.
Insert missing intervals
If you select Insert missing intervals, missing intervals will be added to the output file. They will commence from the top of the hole.
ID Field
Write labels
Select this option to write labels to the output file. Composited grade and waste intervals can be labelled.
Field name
You can flag the waste and grade composites by entering the name of a field, and waste and grade labels. This field will be created when you run the function and the waste and grade labels written to each interval according to its contents.
Enter the name of the ID field that labels will be written to in the output file.
Grade label
Enter the code that will be written to the nominated ID field in the output file whenever the interval is a Grade composite.
Waste label
Enter the code that will be written to the nominated ID field in the output file for intervals that are not grade composites. This input will be disabled unless the Composite waste intervals option has been selected.
Report file
Double-click (or click on the Select icon) to select the name of a Report file. If any errors occur during the process, they will be written to the Report file. See: Errors in the Compositing process
Forms
Click the Forms button to select and open a saved form set, or if a form set has been loaded, save the current form set.
Run
Finally, click Run to begin the process.
