3D Angle and Distance

THIS TOPIC IS A WORK-IN_PROGRESS

Click the 3D Angle and Distance tool on the String Editor toolbar to specify an angle (azimuth) and a distance for the next segment when you are digitising a string. ... (from the old Mode option) ... calculate a bearing and distance in 3D (Plan) view

If no strings are selected, the Selection Assistant prompts you to select the string(s) you want to apply a bearing and distance calculation to. When you select one or more strings and accept the selection, the ClosedAngle and Distance form is displayed.

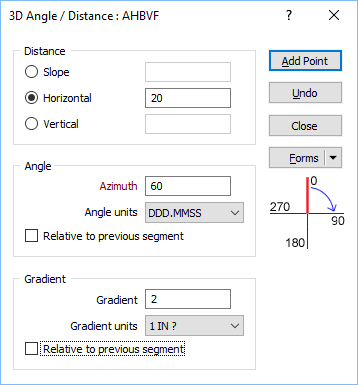

Use this form to specify a bearing (azimuth) and a distance for the next segment when digitising a string. The distance is measured using either the horizontal or the vertical (projected onto the plane) distance, or the actual 3D distance (taking into account the elevation). Specify a gradient value and the units in which the gradient is measured.

Mode

You can extend the string(s) in one of two modes:

Distance Options

These prompts will change when you switch between 3D mode and 2D (Screen Plane) mode.

When digitising a string in 3D mode, the distance for the next segment can be measured using:

When digitising a string in 2D mode, the distance for the next segment can be measured using:

Distance

Enter the distance to which the string(s) will be extended (in grid units).

Angle/Bearing

These prompts will change when you switch between 3D mode and 2D (Screen Plane) mode. The Bearing and Azimuth prompts relate to 3D mode.

Azimuth/Angle

Enter the Azimuth (3D) or Angle (2D Screen Plane) that will be applied to the next string segment.

Azimuths are expressed in decimal degrees, with zero (0°) being grid North. Negative values (anti-clockwise direction) and values greater than 360° are correctly evaluated.

Angle units

Select the format to be used for the Angle Units.

Relative to previous segment

If this option is selected, the azimuth of the next string segment will be measured relative to the azimuth of the previous segment, instead of relative to grid North (0°).

Gradient

Specify the gradient of the next segment. If the Gradient value is zero or is empty when in “1 IN ?” mode, the generated line segment will be horizontal (non-sloping).

In Screen Plane mode, the gradient is used to define the angle (instead of the bearing) since the gradient implies a change in Z values. "Z" is the screen up (2D Y axis) in Screen Plane mode.

Gradient units

Select the (1 IN ?, PERCENT, DEGREES, GRADIENT) in which the gradient is measured. See: Gradient Units

Relative to previous segment

If this option is selected, then the gradient is calculated as the sum of the gradient of the previous segment and the gradient value entered in the form.

Add Point

Click the Add Point button to add successive points at the bearing and distance specified.

Undo

Click the Undo button to undo the last addition.

Close

To close the form, click the Close button.

Forms

Click the Forms button to select and open a saved form set, or if a form set has been loaded, save the current form set.

Manage

To save the types, attributes and names you have defined and re-use them in other functions, select Manage button to create a form set or load an existing form set.

Save

Click Save to save your changes as the default form set.

Save As

Click Save As to save your changes as a new form set.

Reset

Click Reset to clear the form of all values and reset the form to its default state.
