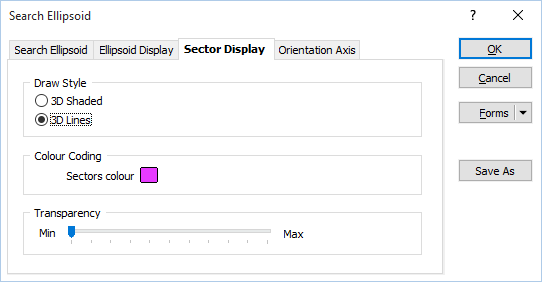

Use the settings on the Sector Display tab of the Search Ellipsoid form, to define the appearance of the sectors of the ellipsoid object.
Draw Style
Select a Draw Style:
|
Style |
Description |
|---|---|
|
3D Shaded |
This draw style cannot be plotted. When plotted, it is drawn as 3D lines. |
|
3D Lines |
Select this option to view the ellipsoid as 3D lines. |
Sectors Colour
Double click (F3) the colour buttons to select a display colour for the sectors of the ellipsoid.
Transparency
Use the transparency slider to specify the intensity of the display layer. The visibility of the layers underneath the current display layer will be determined by the degree of transparency you select.
