Drive Wireframe

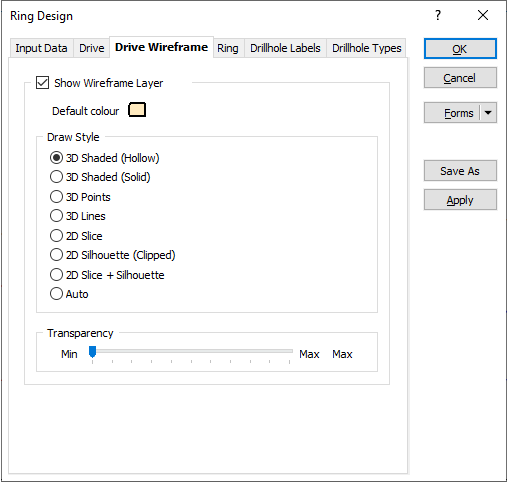

On the Drive Wireframe tab of the Ring Design form, set display options for the drive wireframe in your design.

Show Wireframe Layer

Enable the Show Wireframe Layer checkbox if you would like the 3D wireframe representation of each ring design drive to be visible when a ring design layer is loaded.

Default Colour

Select a colour for the drive wireframes

Draw Style

Select the draw style and transparency for drive wireframes.
