Output

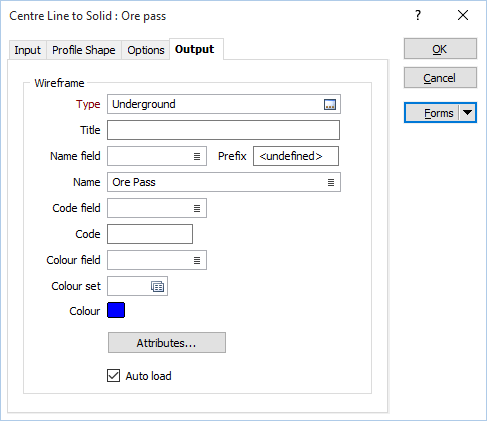

Specify the following parameters on the Output tab of the Centreline to Solid form:
Type
Double-click (F3) to select the Type and Name of the output wireframe. A Type and a Name default are mandatory. A Name field may also be specified.
Title
Enter a meaningful Title for the wireframe you are creating.
Name field
Optionally, double-click (or click on the List icon) to select a field containing the values that will be used to name each output wireframe. If a field value is blank, the Name parameter (below) will be used instead.
Prefix
An optional prefix may also be added to the name of each wireframe.
Name
Double-click (or click on the List icon) to select a wireframe name. If a Name field is defined (above) the Name you select here will be ignored, unless the Name field value is blank.
In the case of multiple wireframes, if the name of the output wireframe is not unique, an incremental suffix will be added, i.e., WF_01, WF_02, WF_03 etc.
Start number and Increment
Each output wireframe (shell or volume) is given the name and prefix you defined above {if any), with a Start number appended, and then subsequently incremented by the Increment value specified.
Code
Enter a Code that can be used to differentiate between the wireframes generated as a result of this process. If no Code Field has been assigned (or Code values are missing) from the Input file, the Code value you enter here will be assigned to the generated wireframes.
Colour
Double click (F3) to select the Colour that will be used to display the generated wireframe.
Attributes
Click the Attributes button to set Attributes for the wireframe output.
User-defined attributes may be mapped against the fields in the Input file. It is also possible to specify a default value for each attribute. Default values are used when a corresponding value in the Input file is either missing or is not mapped.
Auto load
Select this option to load the generated output in Vizex. The default draw style for an auto-loaded wireframe is 3D Shaded.
Forms
Click the Forms button to select and open a saved form set, or if a form set has been loaded, save the current form set.
Run
Click the Run button to run the function and create the wireframe.
