Create Floor Wireframe
|
Use the Create Floor Wireframe tool (Mining | Underground Design | Create Floor Wireframe) to generate a declined or multi-level surface wireframe from strings or points selected in the display. |
You can create a surface from a layer that is not the active edit layer. This makes it possible, for example, to build a surface from CAD/GIS data, without having to convert that data into Micromine String format.

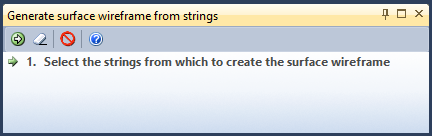

If no objects are selected the Selection Assistant will guide you through the process:
- Select the strings or points to generate a surface wireframe from.
In the case of strings, you will generally select the top or outer string before generating a wireframe. This string is used as the boundary string and no triangles are generated outside it. However, if you select an intermediate string, this will be used as the boundary string.
- Accept the string selections to invoke the Build Surface Wireframe form.

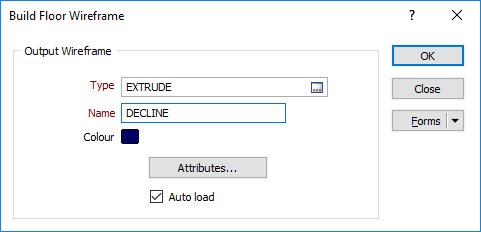

- In the Build Floor Wireframe form, specify the properties of the Output wireframe.
Output Wireframe
Type and Name
Specify the type and name of the generated wireframe.
Colour
Specify a default display colour for the generated wireframe.
Attributes
Click the Attributes button to set standard and user-defined attributes for the wireframe. When you save a wireframe, you should set standard attributes (colour and title settings etc.).
Auto load
Select this option to load the generated output in Vizex. The default draw style for an auto-loaded wireframe is 3D Shaded.
Forms
Click the Forms button to select and open a saved form set, or if a form set has been loaded, save the current form set.
Run
When you have set processing options, click Run to run the function
