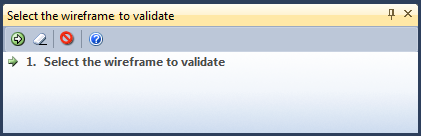

Select Wireframe | Validate (or click the Validate Wireframe tool on the Wireframe Tools toolbar) to validate a wireframe. If no wireframe is selected in Vizex, you will be prompted to select one:

It's always a good idea to validate triangulations as you create them, especially if the strings you are working with do not form easily. The two main validation issues for surfaces are:

• All surfaces are closed.
• For surfaces that are not closed, like faults, the main issue is that there are no intersecting triangles.

Check self-intersection

When this validation option is selected, the Validate function will check for intersecting triangles. The highlight colour selected as part of your Vizex Options will be used to display self-intersecting triangles.

Check closure

When this validation option is selected,  the Validate function will check that each surface is closed. If you do not need to check for closure, for example, when you have triangulated a fault, select the Check self-intersection option only. The highlight colour selected as part of your Vizex Options will be used to display a surface that is not closed.

If open sections or connection errors are detected during the validation process, wireframe validation strings are created. If those strings are coincident with the original construction strings, then they will be given priority when strings are selected during editing.

This makes it easier to correct the wireframe using both the validation strings and the construction strings.

Review the results of validation and then click OK to close the Results window. The colours you have set as part of your Wireframing options will be used to highlight any triangulation problems.

The following results are reported:

• Invalid Connections. When these are found, the validation process will not be continued.
• Open sections. These may not necessarily be errors.
• Intersecting triangles. These must be corrected. There can be no intersecting triangles in a valid wireframe.

Unnecessary points and triangles are removed automatically as part of a Wireframe Clean operation.

To validate the wireframes in a wireframe set, or validate a single wireframe:

1. Select Wireframe | Report | Validation.

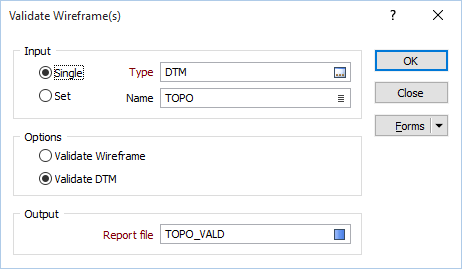

2. In the Validate Wireframe dialog, select an Input option.

You can either select a single wireframe of a nominated type and name, or select the set option to select the name of a wireframe set.

3. Select a Validation Option:



To check that a surface is a valid DTM, select Validate DTM.

4. Enter (or click on the Select icon to select) the name of a Report file and then click OK to begin validation.

To validate a wireframe in the Wireframe Manager:

1. Click the Validate button to validate the wireframe selected in the grid.

You can also right-click on a wireframe name and select Validate from the right-click menu.

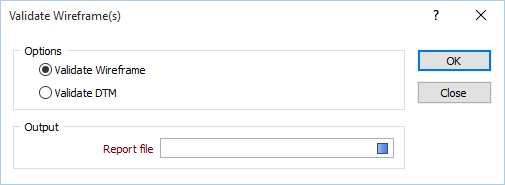

2. In the Validate Wireframe dialog, select a Validation Option:



To check that a surface is a valid DTM, select Validate DTM.

3. Enter (or click on the Select icon to select) the name of a Report file and then click OK to begin validation.
